Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve

Name: Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve
Brand: FABIA
Price: 1 USD

Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve Manufactures

Brand Name : FABIA

Place of Origin : China

Certification : ISO9001,CE,CCS,DNV

Model Number : 1/8 inch ～ 36 inch

MOQ : 1 set

Price : Negotiable

Packaging Details : Cartons/Wooden cases

Delivery Time : 15-30 work days

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union

Supply Ability : 100-1000 set per week

Product Name : Manual High Pressure Ball Valve

Valve Type : High Pressure Ball Valve

Material : Stainless Steel

Operation : Manual

End Connection : Threaded

Actuator : Handle/turbine

Application : Oil & Gas, Petrochemical, Power Plant, etc.

Seat Material : PTFE

Pressure Test : Hydrostatic Test, Pneumatic Test

Size : 1/8 to 24 inches

Pressure Rating : Class 150 to Class 2500

Temperature Range : -20 to 200°C

Contact Now

FABIA Manual High Pressure Three-Way Ball Valve

1. Description:

Role of water supply, petrochemical, metallurgy, mining, textile, energy, paper, food, steel and other pipeline system intermediary flow direction switch, as well as the role of the medium shred or mixed fluid.

2. Specification:

FABIA Valve Parameter List
Valve type:	Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve
Size:	1/8 inch ～ 8 inch
Material:	WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type:	Welded connection/flange connection/thread connection/clamp connection
Driving model:	Manual/Worm gear drive/Pneumatic/Electric
Pressure rating:	PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature:	-196℃～540℃
Model:	FB-Q..........

3. Features:

Compact structure, fast opening and closing, smooth flow path, small fluid resistance.
Easy maintenance: After decompressing the system, the entire valve body can be inspected and maintained without disassembling.
Good sealing performance: the elastic deformation of the four-side seat material PTFE can achieve a leak-free seal.
Valve has a variety of uses: any port can be used as an inlet without leakage.
Tees can be made into L-shaped ports or T-shaped ports.

Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve

Product Tags:

Manual Three Way Ball Valve

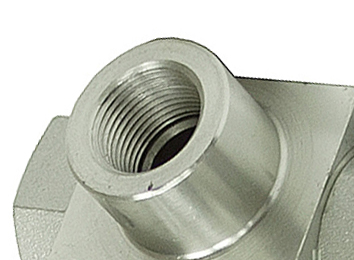

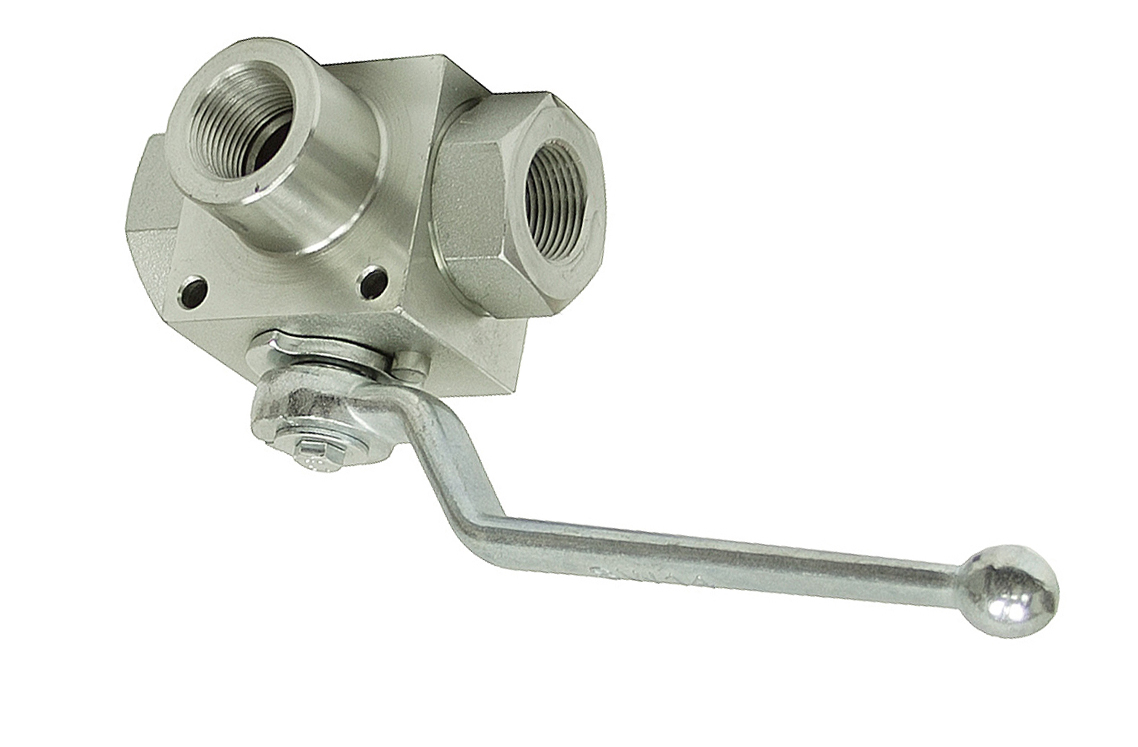

Extra High Pressure Three Way Stainless Steel Ball Valve Manual Valve Images
